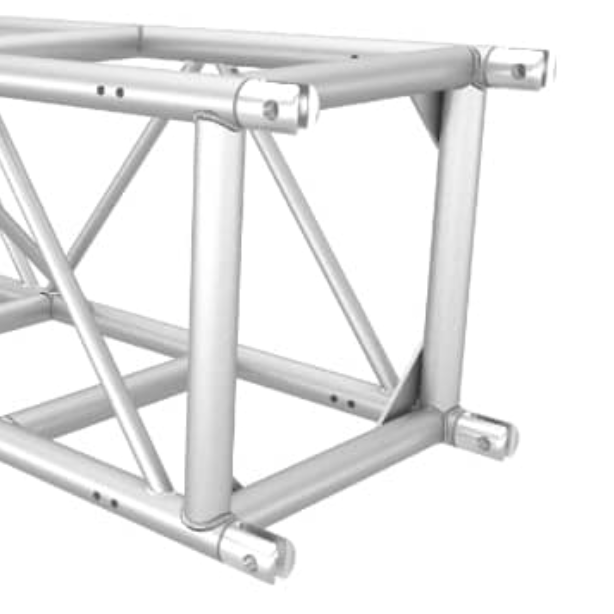

XSF 30-inch x 20.5-inch Aluminum Utility Truss with Aluminum Fork End Corner Block

$1,200.00 USD - $2,803.00 USD /
Subscription -

Select an option to add this to your cart.

This Product Requires Freight Shipping - Please Request a Quote for a Shipping Estimate

The chords are 2-inch OD x 1/8-inch thick with 1-inch OD x 1/8-inch thick diagonals.  The trusses are joined together with 5/8-inch steel bolts.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.
