Load capacity chart for various spans, showing UDL, CPL, 3PL, and 4PL values in plf and lbs for spans ranging from 10 to 50 feet
Damaged aluminum truss examples and intact utility trusses with the caption "Don't Let This Happen to Your Truss."

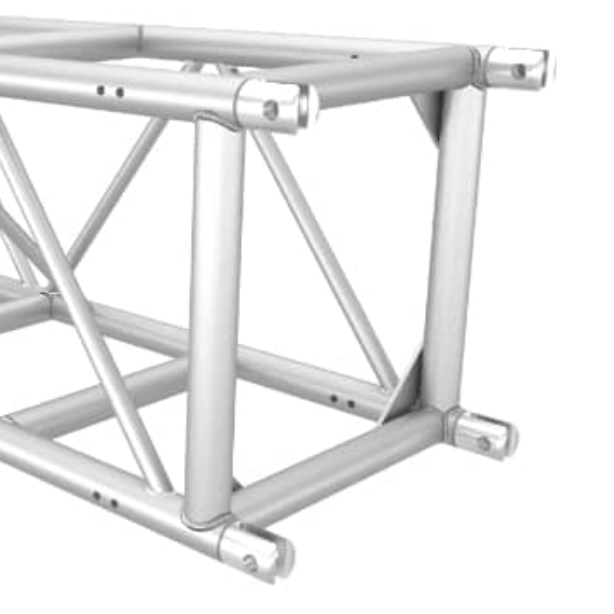

XSF 20.5-inch x 20.5-inch Aluminum Utility Truss with Aluminum Fork End Corner Block

$794.00
 - $1,882.00
$0.00 /
Subscription

Select an option to add this to your cart

This Product Requires Freight Shipping - Please Request a Quote for a Shipping Estimate

The chords are 2-inch OD x 1/8-inch thick with 1-inch OD x 1/8-inch thick diagonals.  The trusses are joined together with 5/8-inch steel bolts.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.



Available
