Mega-Truss Pick for Threaded Rod Installations

  • The Light Source
$160.00 USD - $300.00 USD /
Subscription -

Select an option to add this to your cart.

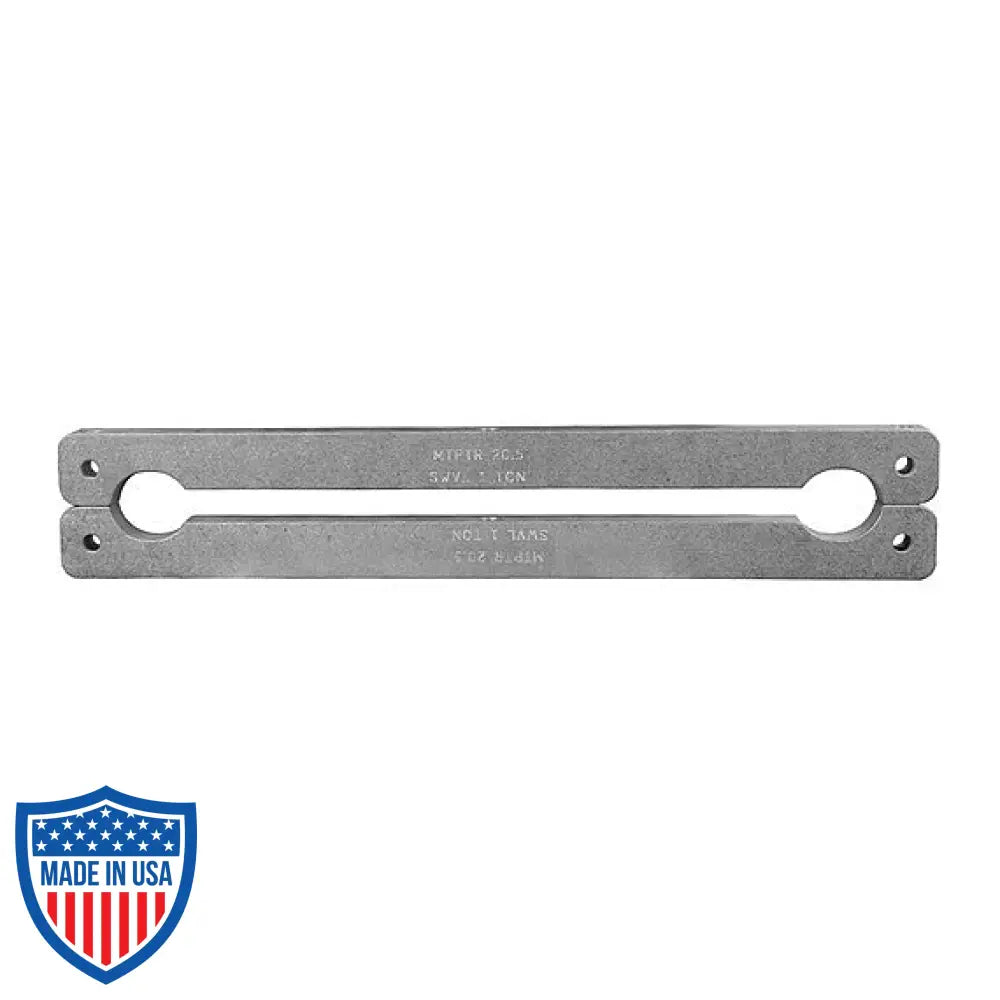

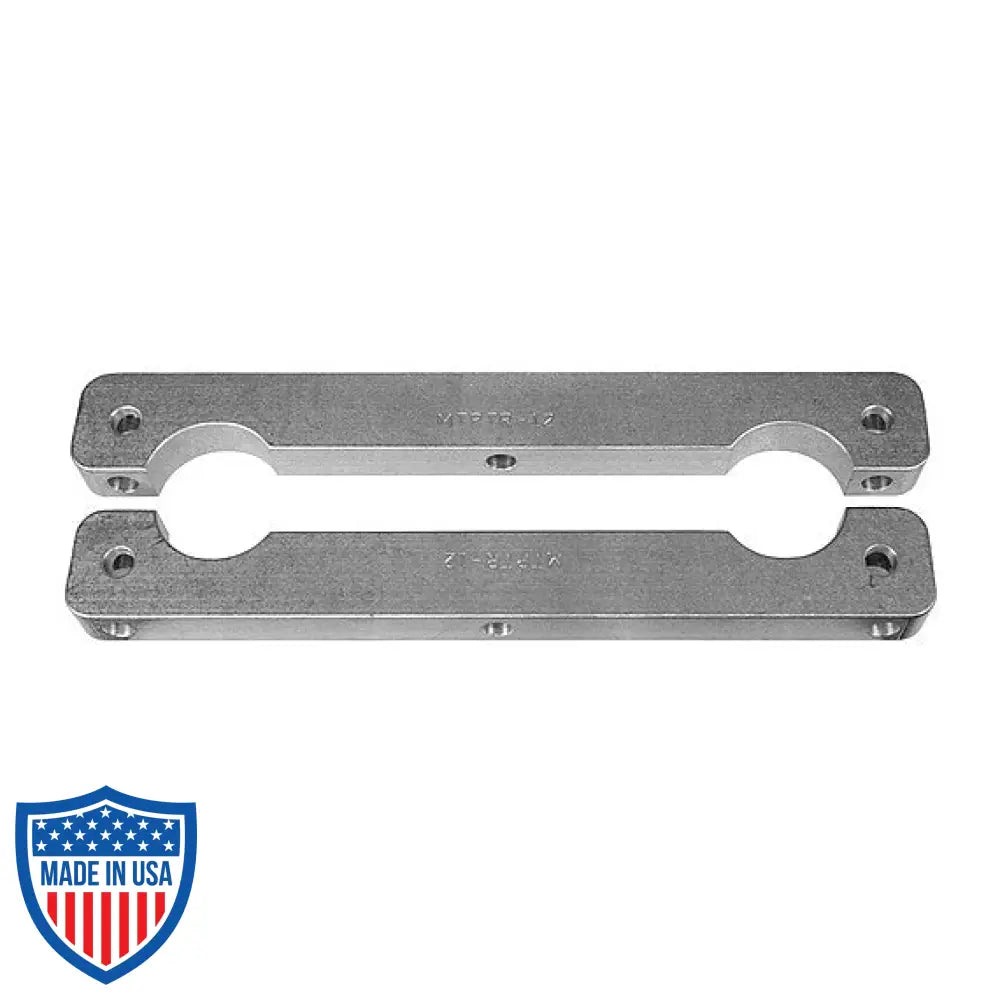

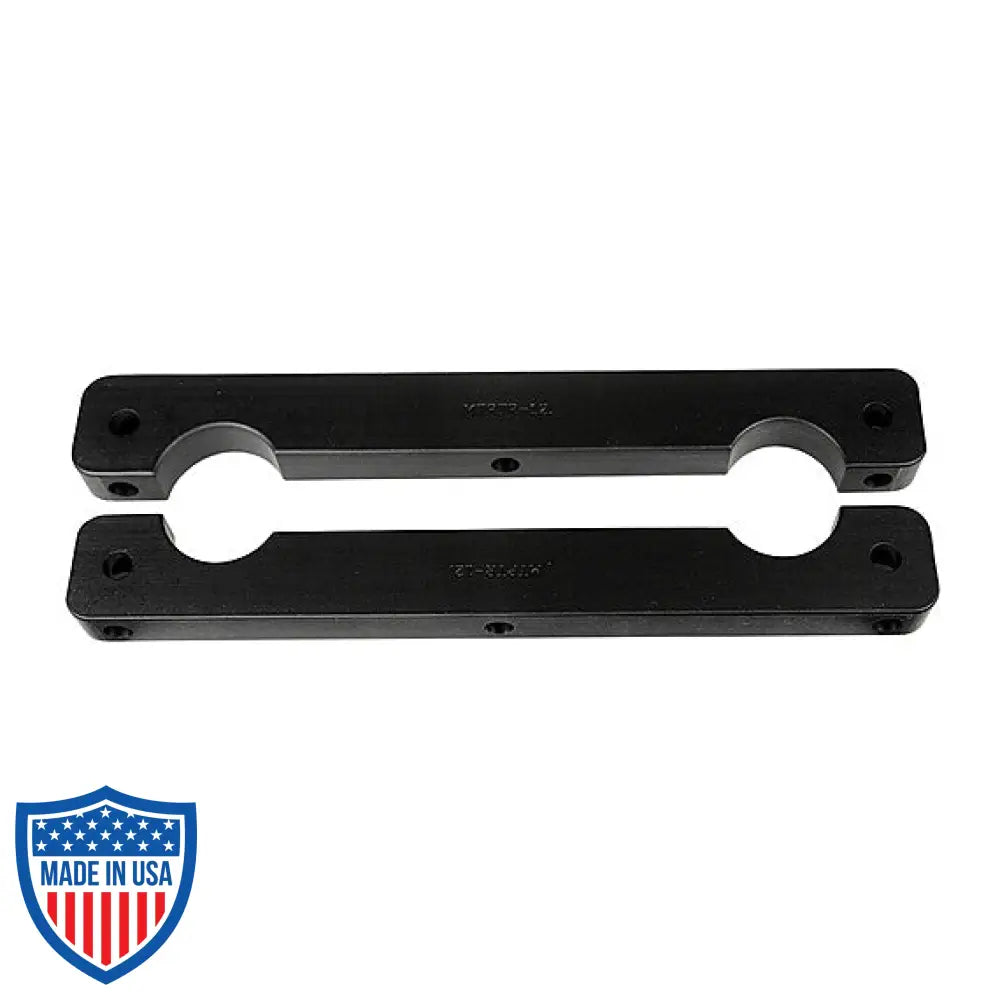

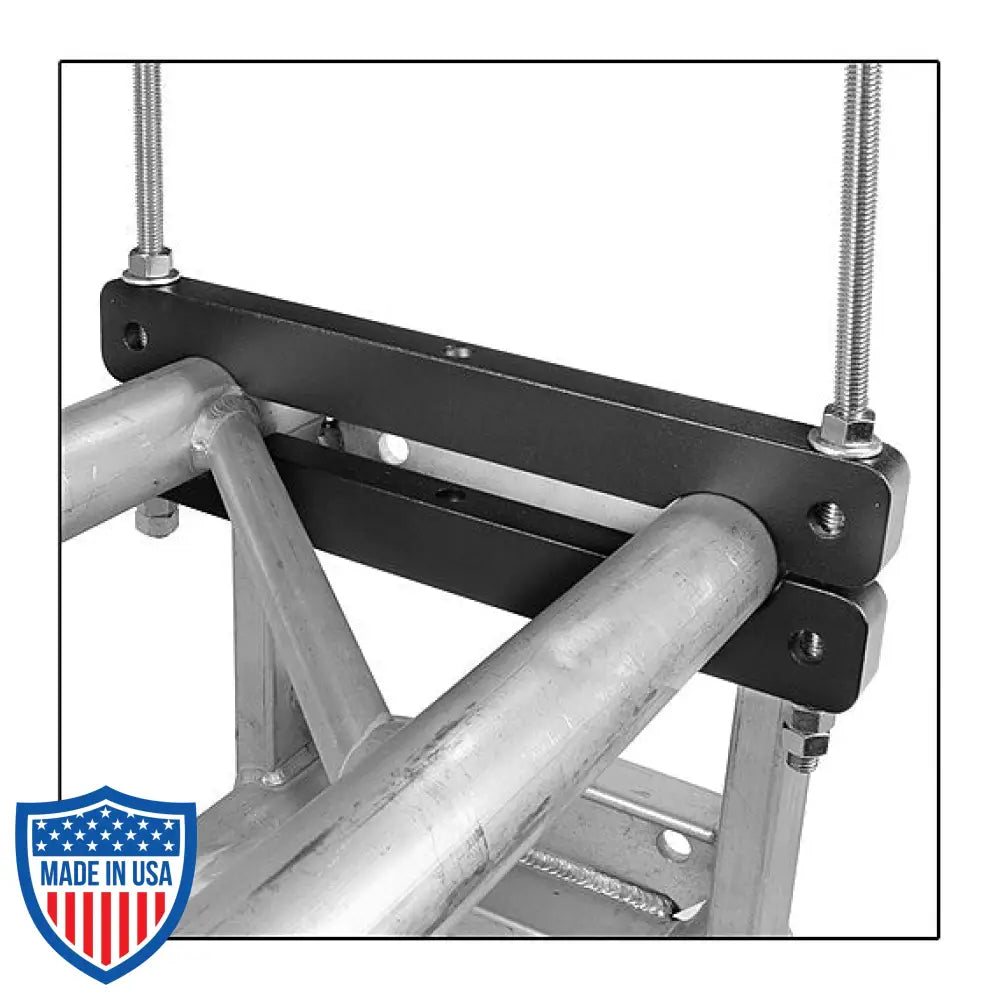

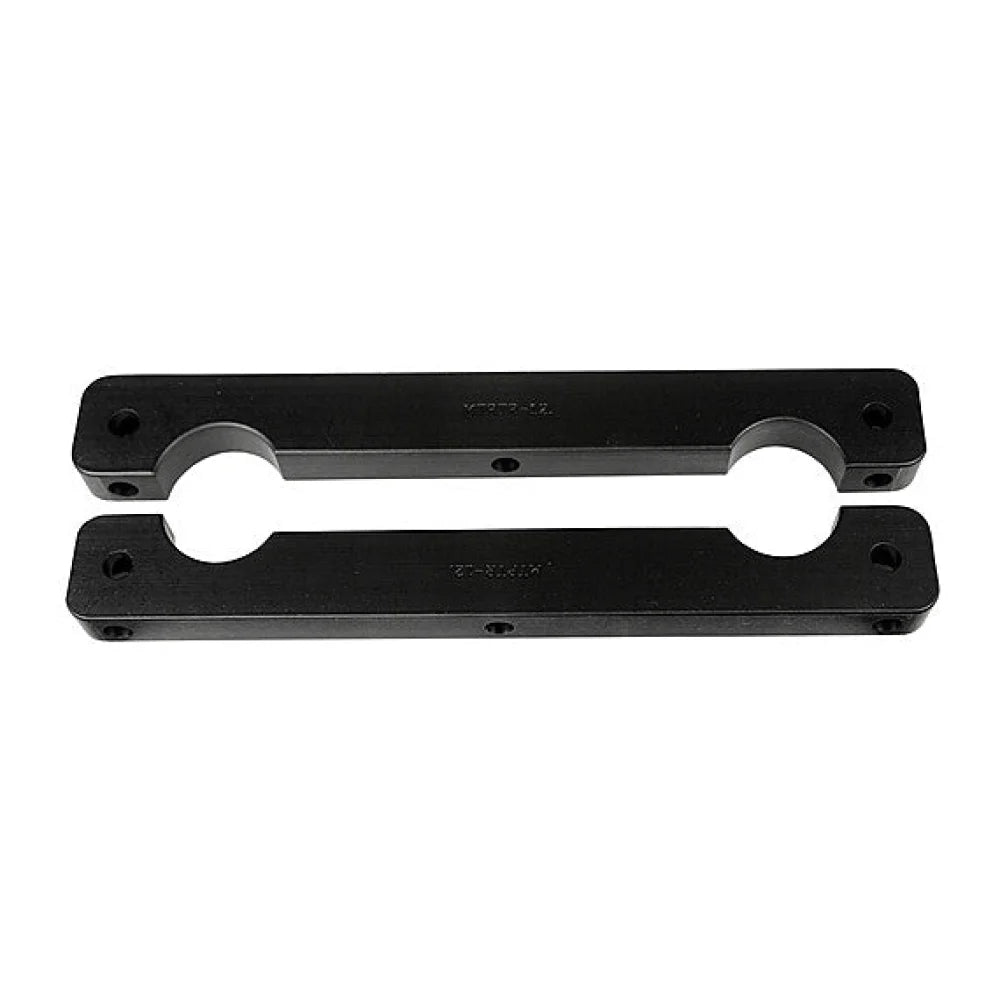

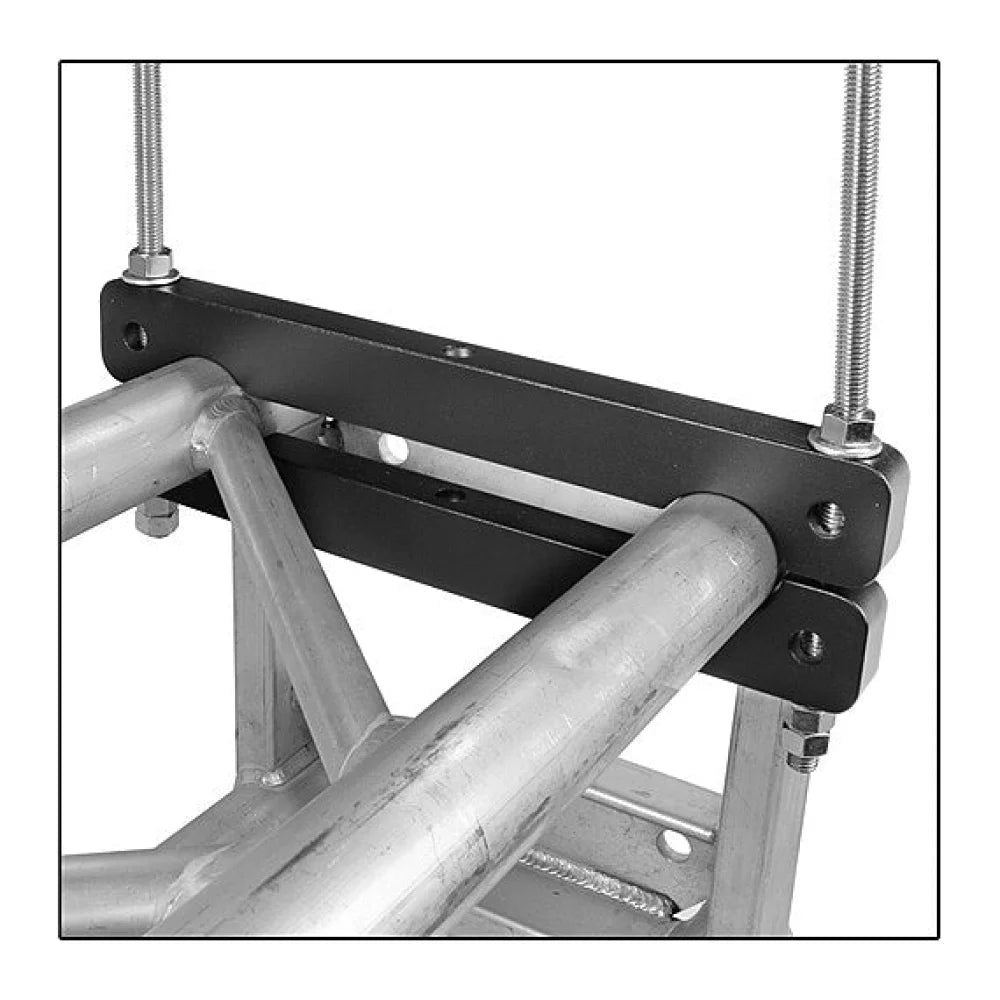

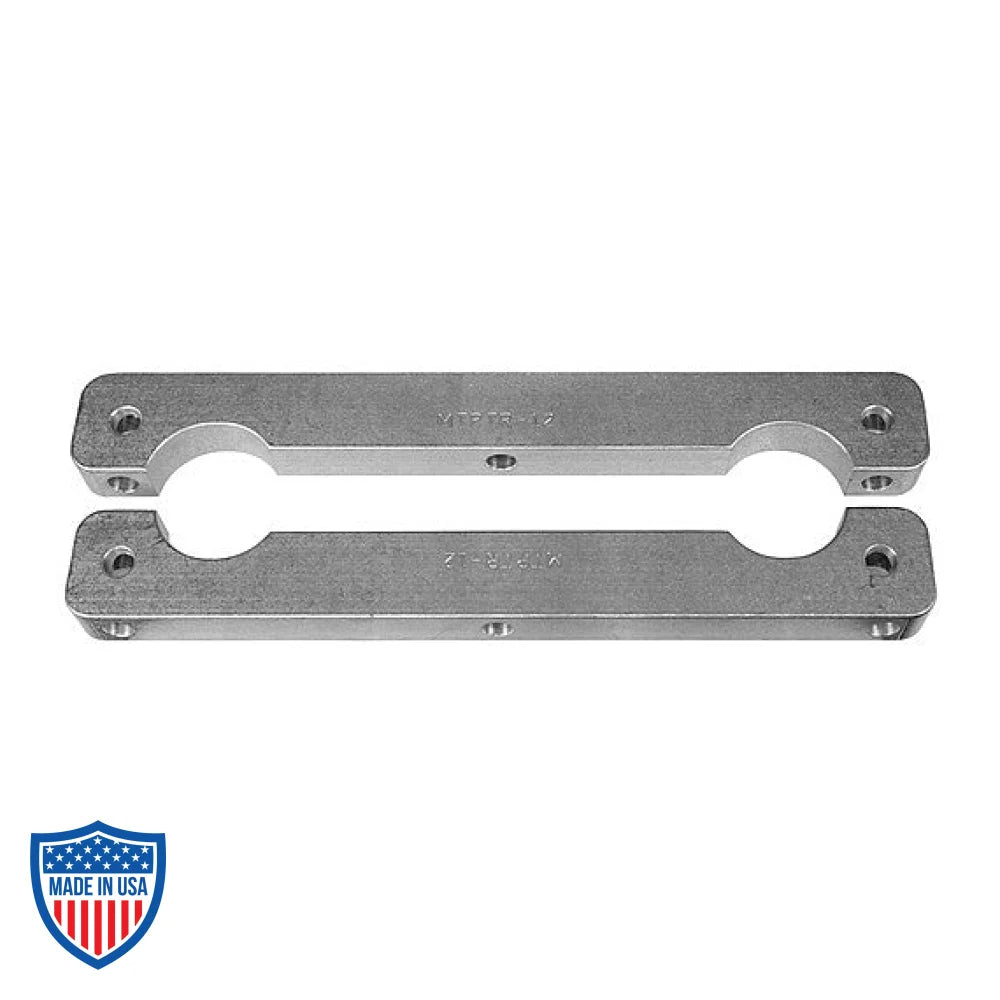

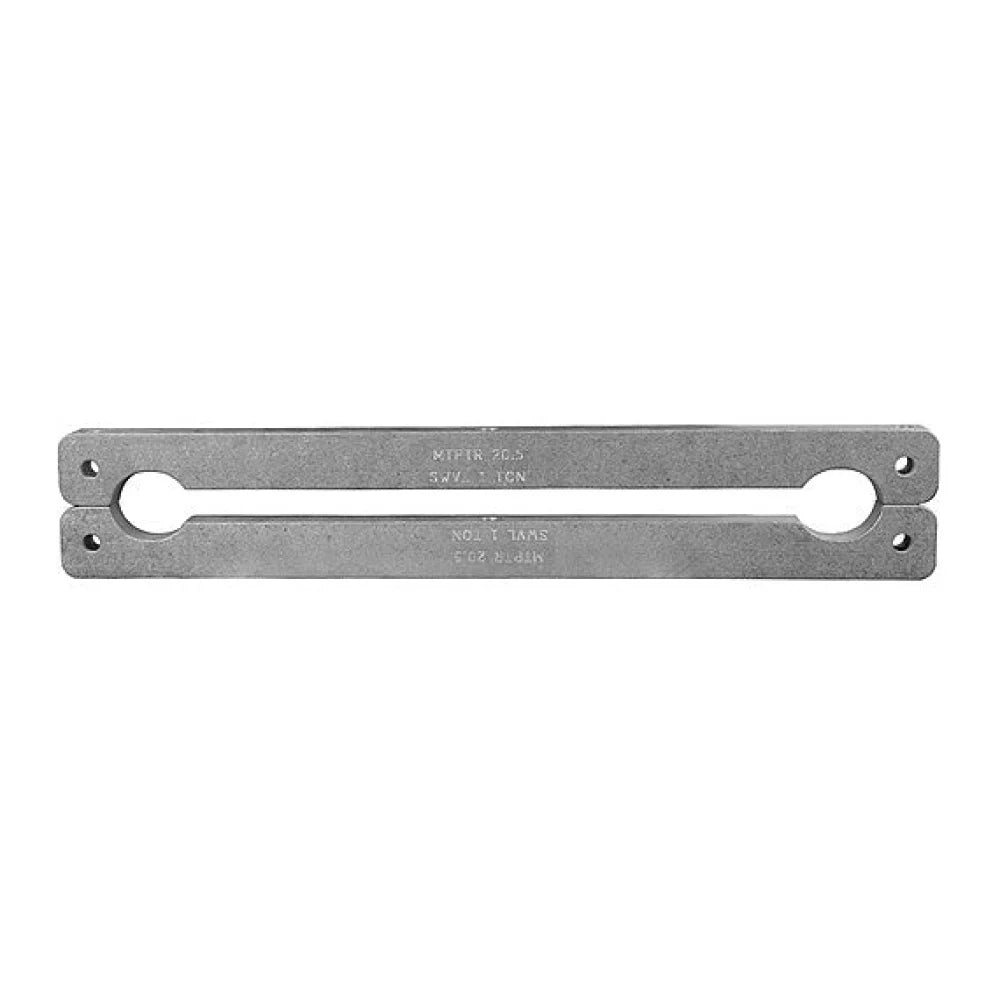

Two 1" x 2" x 15" 6061T-6 aluminum bars CNC machined with pockets to support one piece of 12" truss. The Mega-Truss Pick will suspend up to one ton of truss load when the Mega-Truss Pick is suspended by two customer supplied 1/2" threaded rods, or two 1/2" forged steel shoulder eyebolts fastened through the outside support holes. All of the holes are through holes without threading. Secure the threaded rod with a nut and washers above and use a nyloc nuts with a USS washer below the truss pick.

Rigging from only the center hole de-rates the Threaded Rod Truss Pick to 250 pounds capacity.

Priced per pair.

Available in 12", 16", 18", 20.5" sizes.
11.4375" for Global Truss.

The WLL applies to all sizes.
