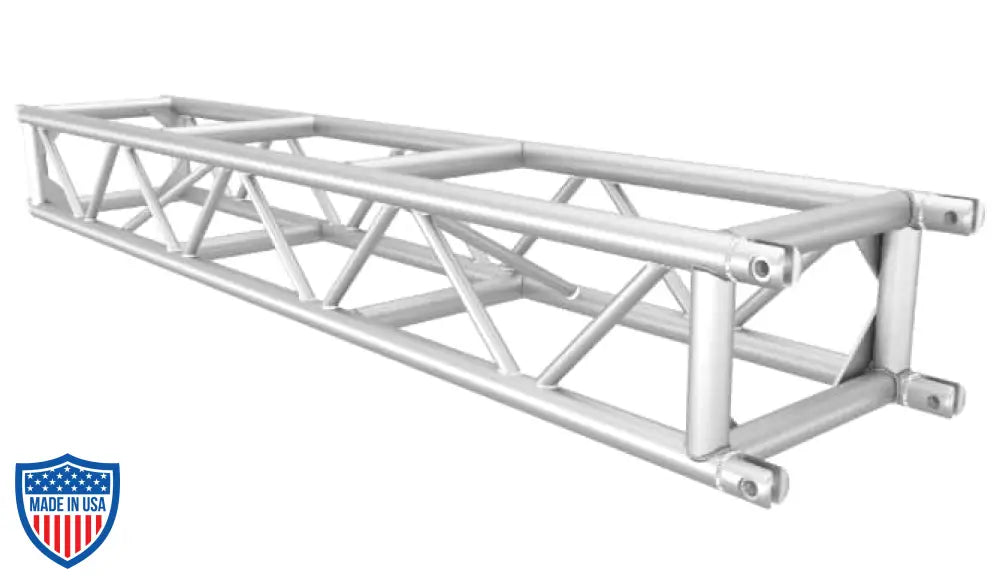

12-inchx18-inch Aluminum Utility Truss with Aluminum Fork End Connections comes in standard lengths of 2', 2.5', 3', 4', 5', 6', 7', 8-foot, and 10 with custom lengths available upon request.
The aluminum chords are 2-inch OD x 1/8-inch thick with 1-inch OD x 1/8-inch thick aluminum diagonals.
The trusses are joined together with 3/4-inch steel clevis pins through 2-inch OD aluminum fork end connections.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
