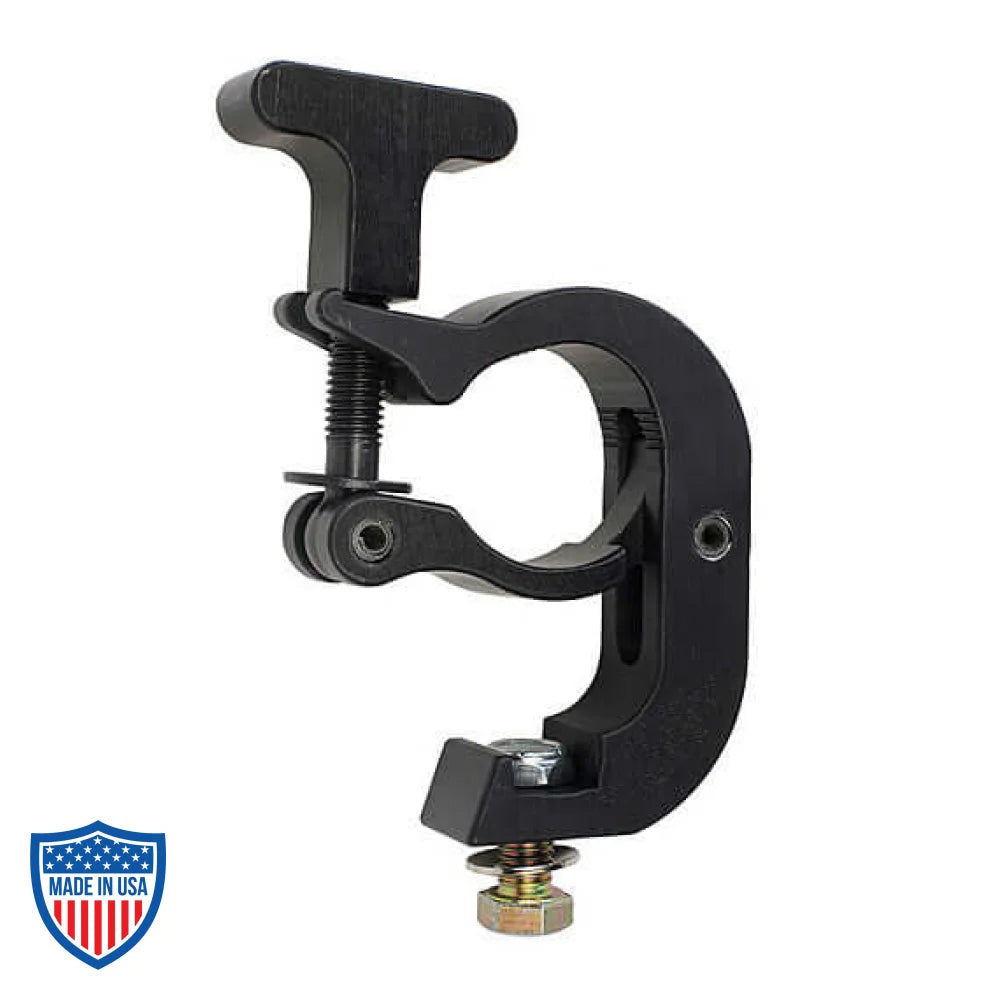

TC Clamp with T-handle for fastening film grip rigging equipment, featuring Grade 8 fastener and Nylock Nut. Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick.

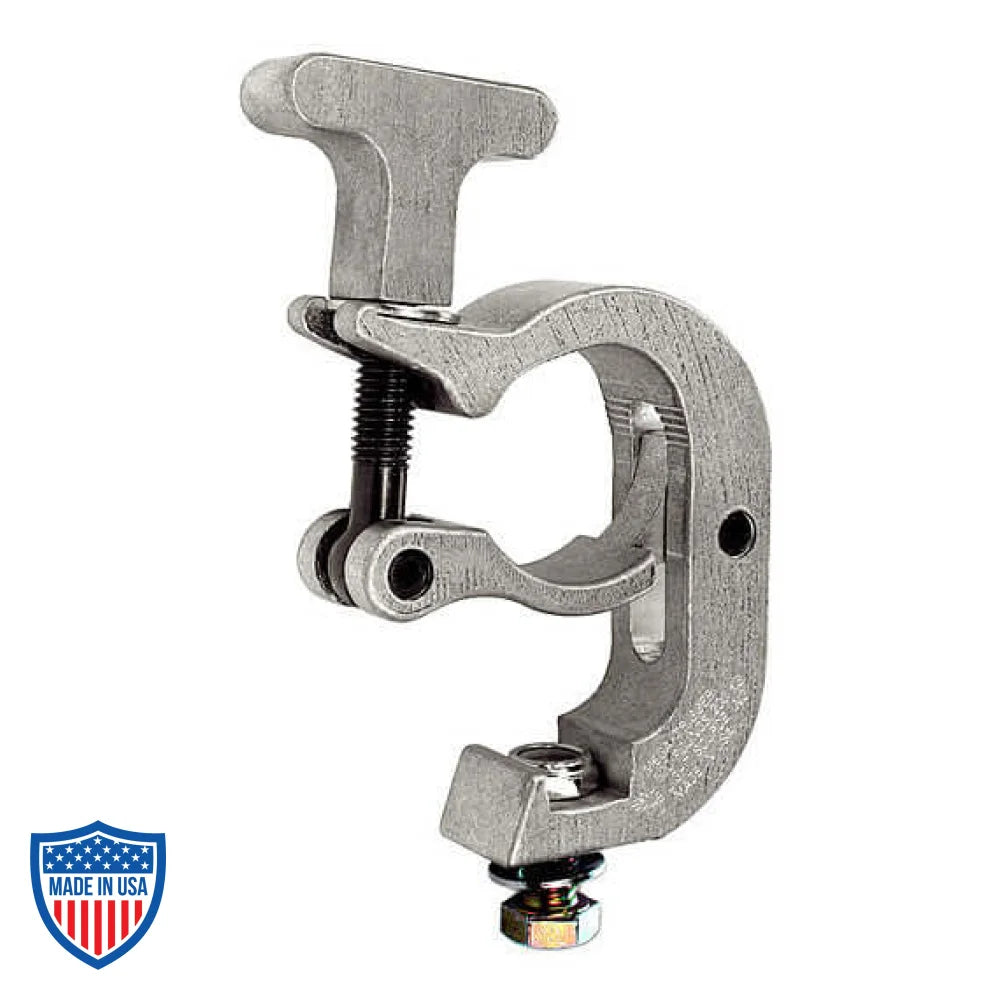

TC Clamp for film rigging with T-handle, Grade 8 fastener, Nylock Nut, and Belleville Spring washer for secure grip and 450-pound load capacity
TC Clamp with T-handle for fastening film grip rigging equipment, featuring Grade 8 fastener and Nylock Nut. Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick.
TC Clamp for film rigging with T-handle, Grade 8 fastener, Nylock Nut, and Belleville Spring washer for secure grip and 450-pound load capacity

TC Clamp

  • The Light Source
$39.90 USD - $48.91 USD /
Subscription -

Select an option to add this to your cart.

The TC Clamp will fasten from 2" OD to 1.5" OD tube. The TC Clamp has a 2-1/2" T-handle so no tools are required to fasten to the pipe. 1.25-inch × 1/2"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load. Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick. Safe Vertical Working Load 450 Pounds, (200 KG). Weight is 1.22 pounds (.55 KG)

Minimum Size

1.5" OD tube, 1.25" pipe, 1.66" OD pipe

Maximum Size

2" OD truss tube,1.5" pipe, 1.90" OD

Working Load Limit

450 Pounds

Hardware

1.25-inch × 1/2" - 13 TPI Grade 8 fastener with Nylock nut.
1" Belleville spring washer.

Dimensions

4 5/8" tall x 4" wide x 1 3/16" thick

Weight

1.25 lbs.

Available
