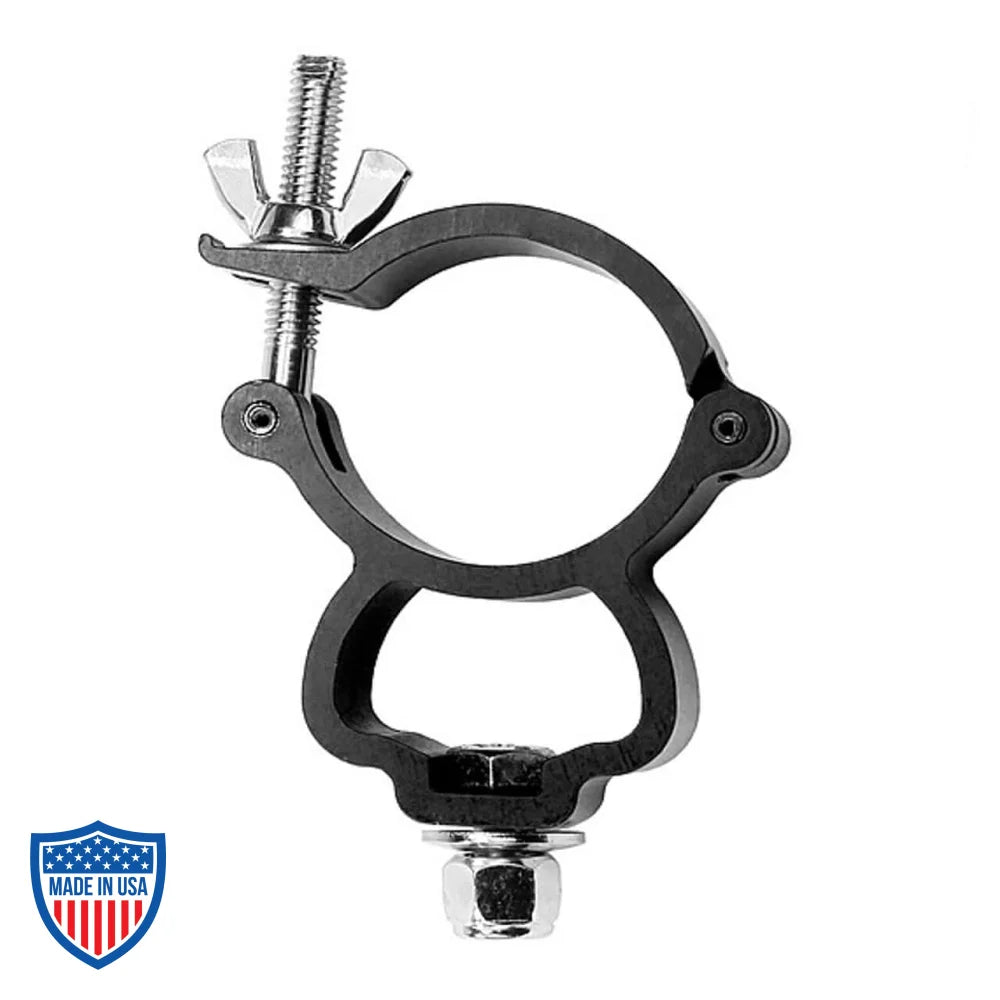

Mini-Coupler for film grip rigging with 330-pound load limit, featuring 3/8-inch x 3/4" Grade 5 bolt, Belleville washer, and Nylock nut.

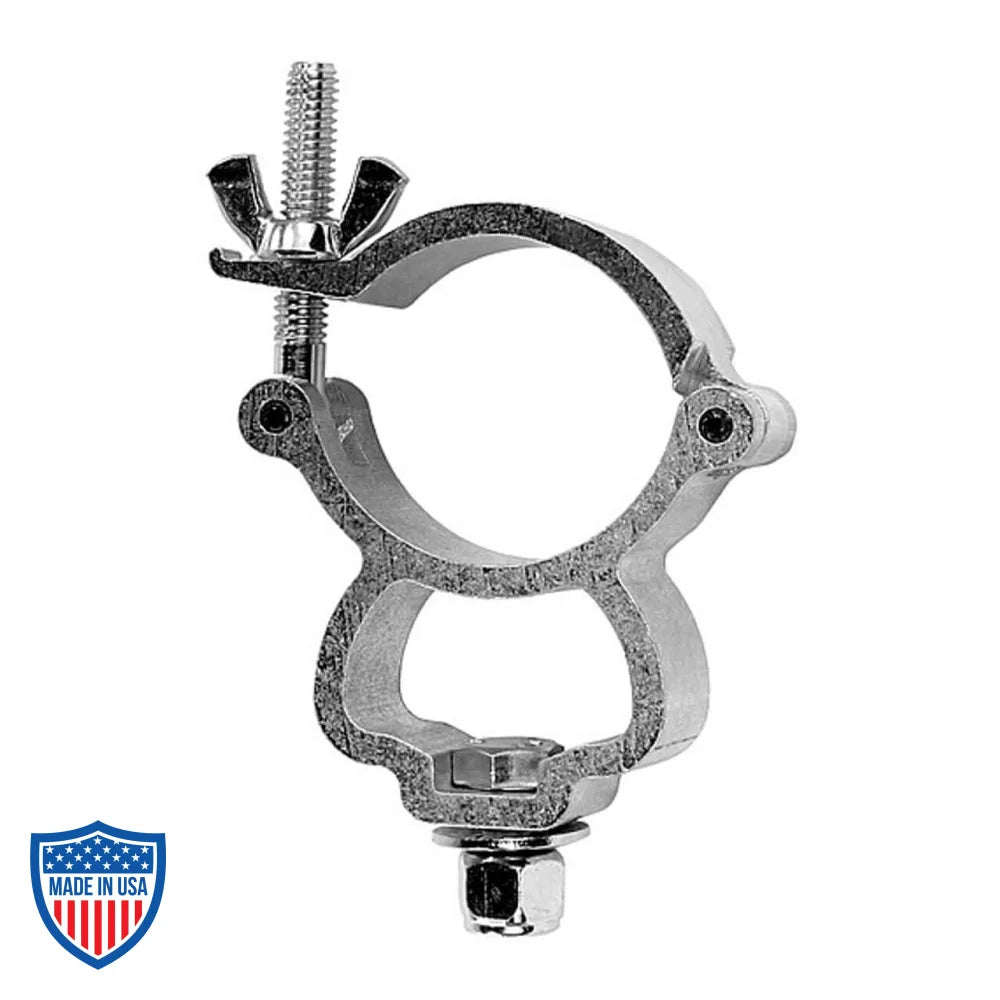

Mini-Coupler 1" wide, fits 1.65"-2" OD tubes, for film grip rigging, 330 lbs load capacity with Grade 5 bolt and Nylock nut
Mini-Coupler for film grip rigging with 330-pound load limit, featuring 3/8-inch x 3/4" Grade 5 bolt, Belleville washer, and Nylock nut.
Mini-Coupler 1" wide, fits 1.65"-2" OD tubes, for film grip rigging, 330 lbs load capacity with Grade 5 bolt and Nylock nut

Mini-Coupler

  • The Light Source
$22.52 USD - $24.45 USD /
Subscription -

Select an option to add this to your cart.

The Mini-Coupler is 1" wide and fits from 1.65" OD to 2" OD Tube. The Mini-Coupler uses a 3/8-inch × 3/4" long Grade 5 bolt with a Belleville washer and a Nylock nut. The Mini-Coupler has a safe working load of 330 Pounds. (150 Kg)

Minimum Size

1.25" pipe, 1.66" OD pipe

Maximum Size

2" OD truss tube,1.5" pipe, 1.90" OD pipe

Working Load Limit

330 Pounds

Hardware

3/8-inch × 3/4" long Grade 5 bolt with a Belleville washer and a Nylock nut.

Weight

.3 Pounds
