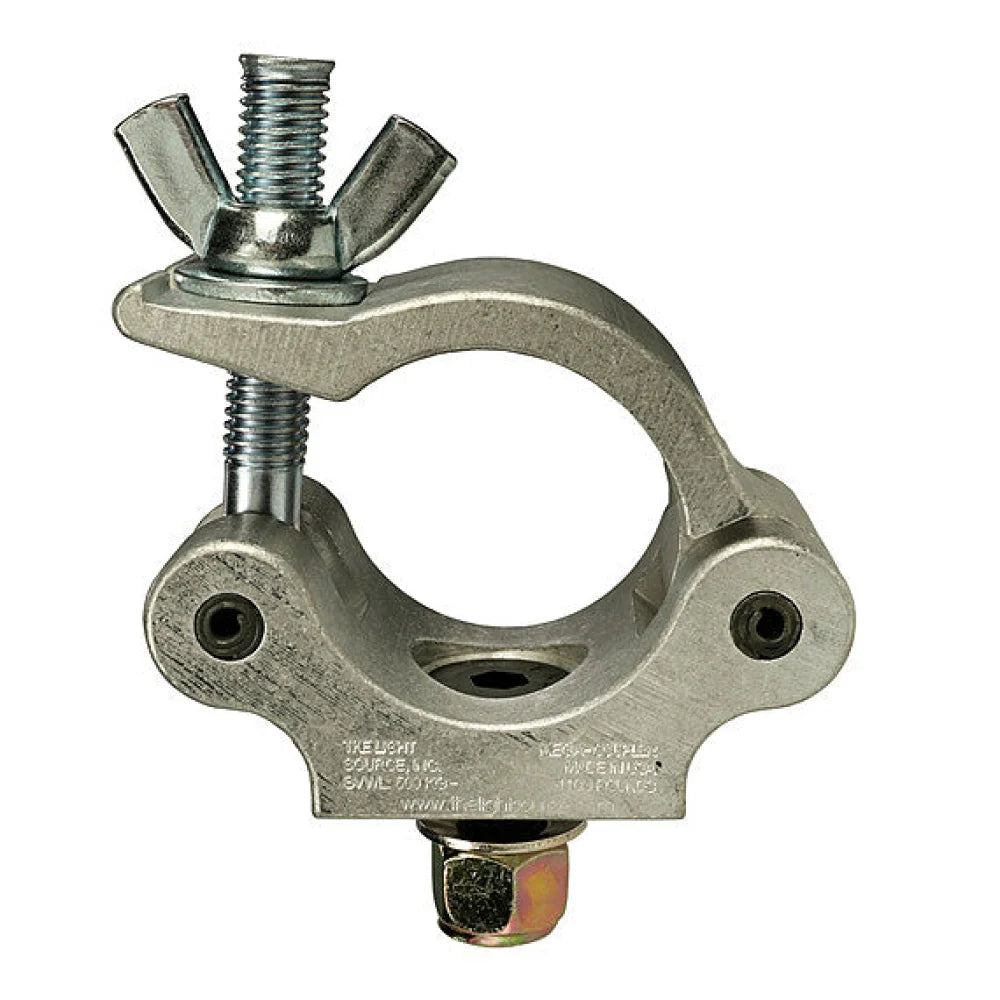

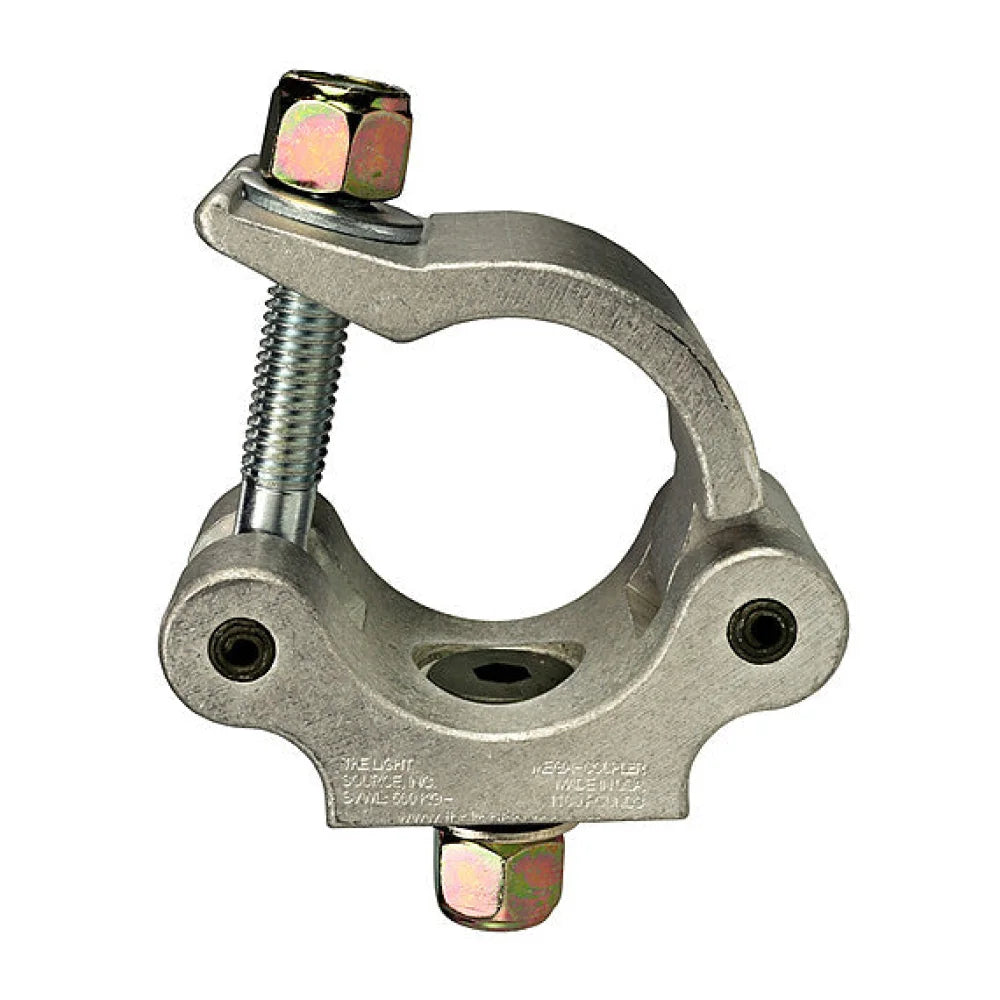

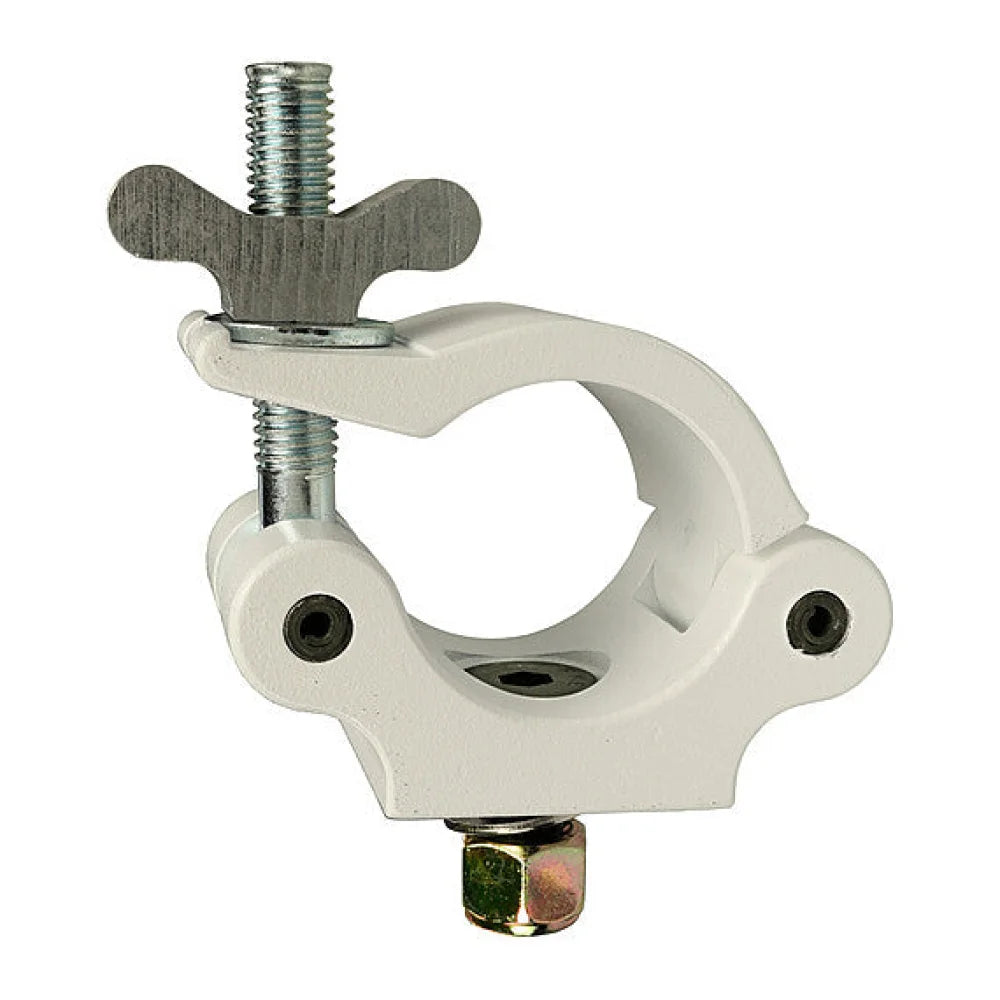

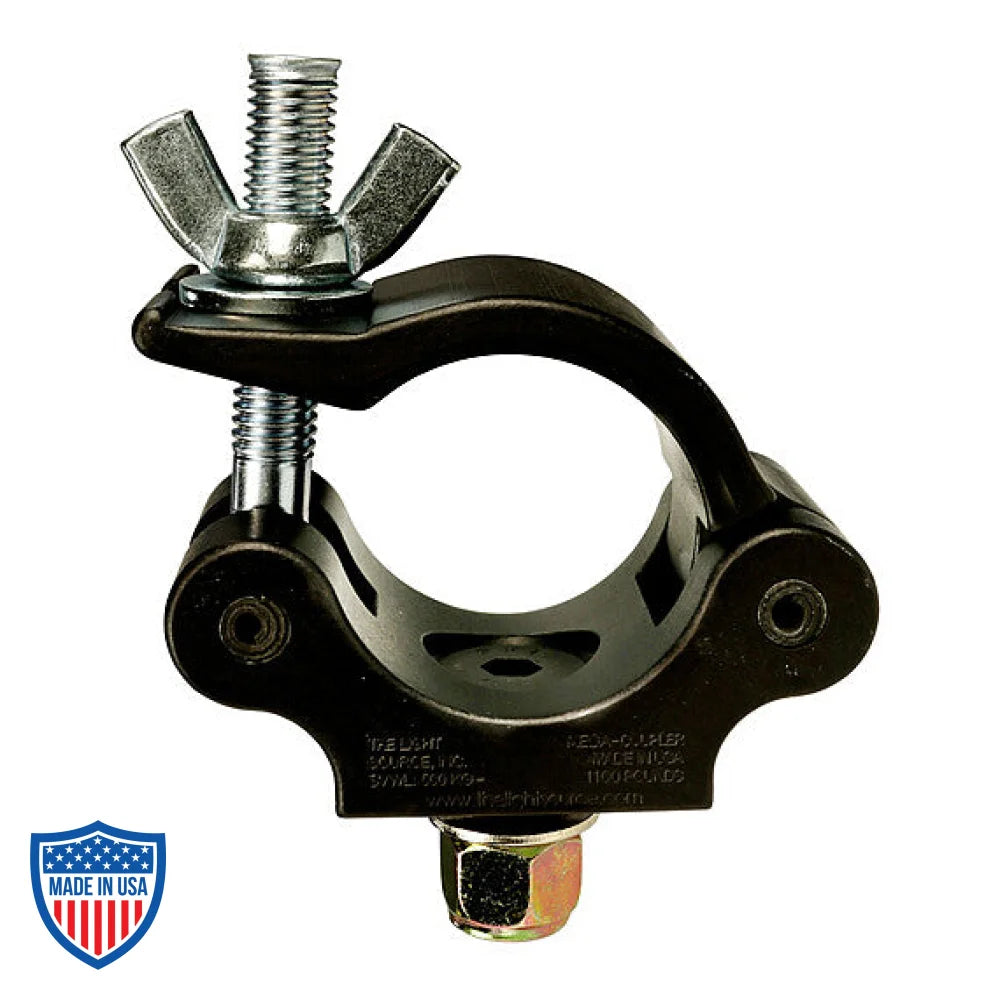

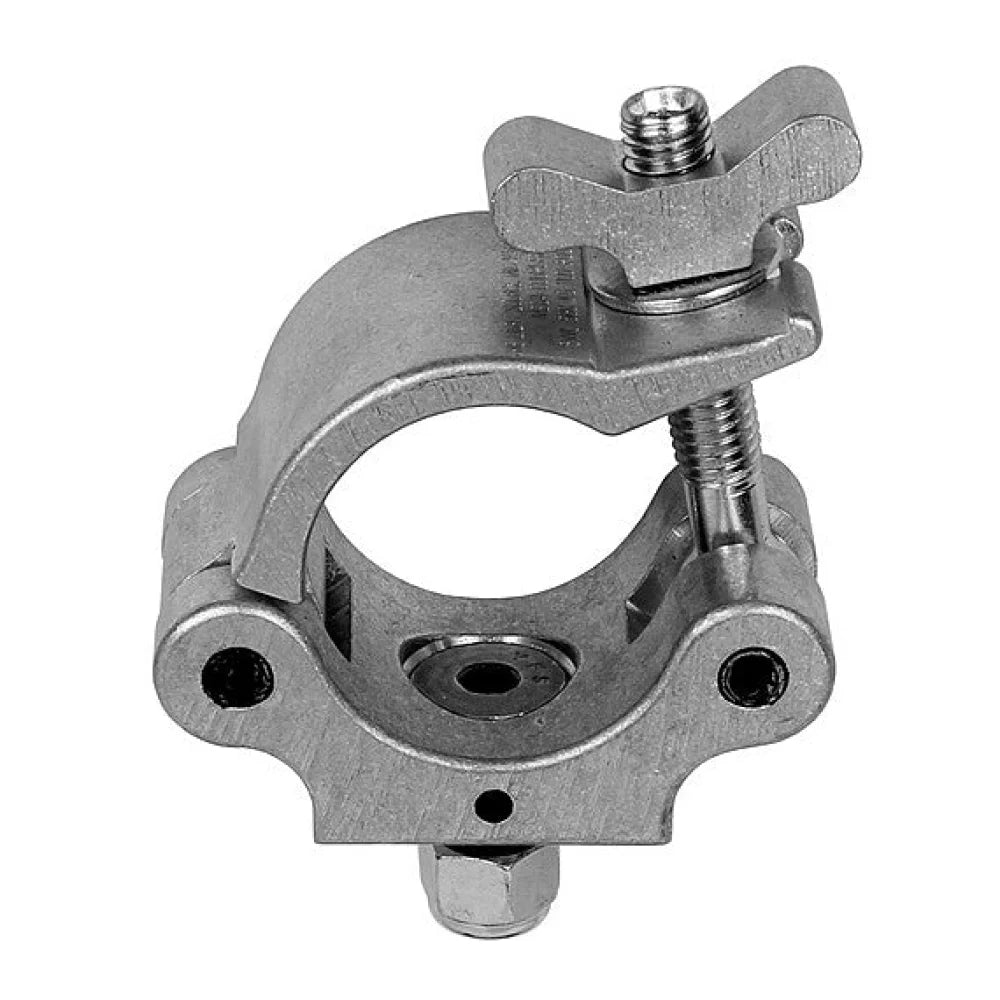

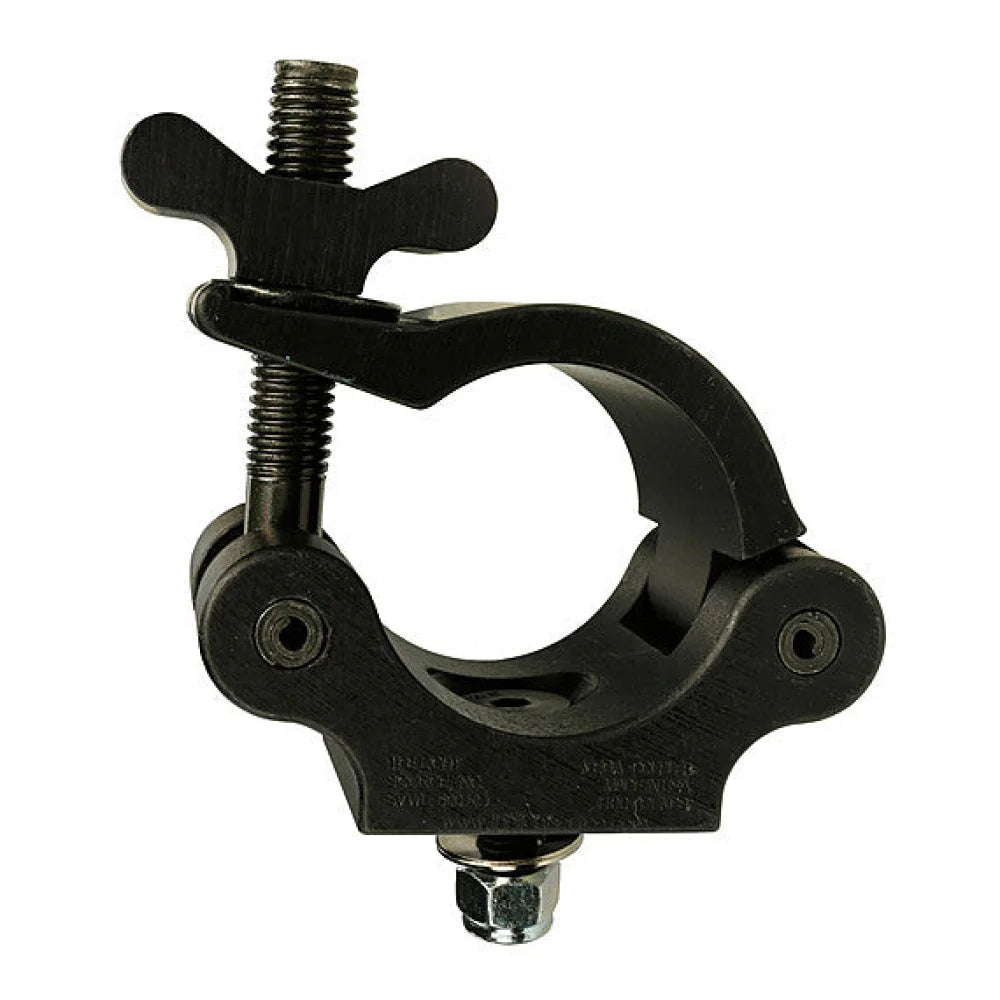

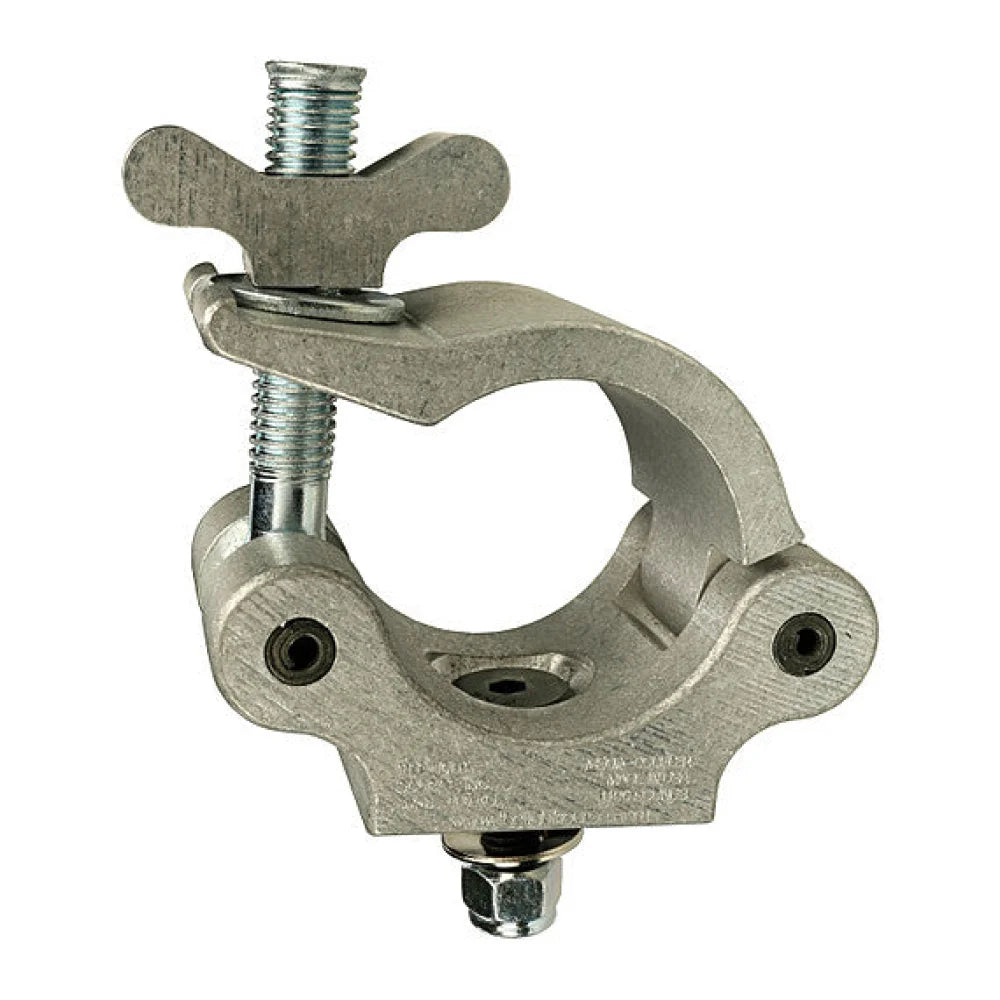

The Countersunk Mega-Coupler replaces the standard hex head bolt with a flat head bolt.
The Countersunk Mega-Coupler comes with a 1/2" or 3/8" flat head base and comes standard with a heavy duty wing nut developed by The Light Source. Other nut options include a steel wing nut or a nylock nut.
For metric requirements, the M10 and M12 flat head bolt is available as well.
- Minimum Size
-
1 1/4" pipe, 1.66OD truss tube
- Maximum Size
-
1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Working Load Limit
-
1100 pounds
- Hardware
-
1/2-inch × 1.5-inch flat head bolt or
3/8-inch × 1.5-inch flat head bolt
Nylock Nut
Belleville Washer
- Weight
-
1.4 lbs. (MLM1/2CS-NN - 1.12 lbs.)
